Vacuum Furnace Support: Why a Maintenance Strategy Matters More Than Reactive Repairs

Reliable vacuum furnace support begins before a failure.
It combines maintenance, diagnostics, spare-parts planning, upgrades and specialist assistance to keep a critical production asset available and its process stable.
When support is treated only as an emergency response, the apparent short-term saving can be quickly offset by unplanned downtime, interrupted cycles, scrap, expedited parts and delivery delays.
These consequences are harder to predict and often more damaging than the repair invoice itself.

A structured program of vacuum furnace after-sales services gives manufacturers greater control over equipment condition, intervention priorities and lifecycle cost.

In this article, we'll explore why a well-planned maintenance strategy is one of the most effective ways to reduce the total cost of ownership of a vacuum furnace and why relying solely on reactive maintenance is often the most expensive choice.

Reactive Maintenance: The Most Expensive Strategy

Reactive maintenance begins when a failure has already occurred.
It has a legitimate role in unforeseen events, but it becomes costly when it is the default model for a production-critical furnace.
A breakdown rarely affects only the failed component.
It may stop production, interrupt a heat treatment cycle, compromise the load and force maintenance and production teams to act under time pressure.
A repair that could have been planned can become vacuum furnace emergency servicing, with urgent troubleshooting, expedited parts, overtime and an uncertain restart time.
Reactive maintenance can be rational for low-criticality, inexpensive or redundant components.
The cost of replacing a worn component is often only a small part of the total expense.
Lost production, emergency service interventions, delayed deliveries, product scrap and unplanned logistics frequently represent a much greater financial impact than the repair itself.
For this reason, reactive maintenance should not be considered a maintenance strategy but rather a consequence of not having one.
Lost output, scrap, delayed deliveries and disruption to downstream operations can exceed the repair cost by a wide margin.

A proactive maintenance strategy, supported by regular inspections, technical support and planned service activities, allows potential issues to be identified before they become critical failures. The objective is not simply to repair equipment, but to maintain process reliability and ensure production continuity.

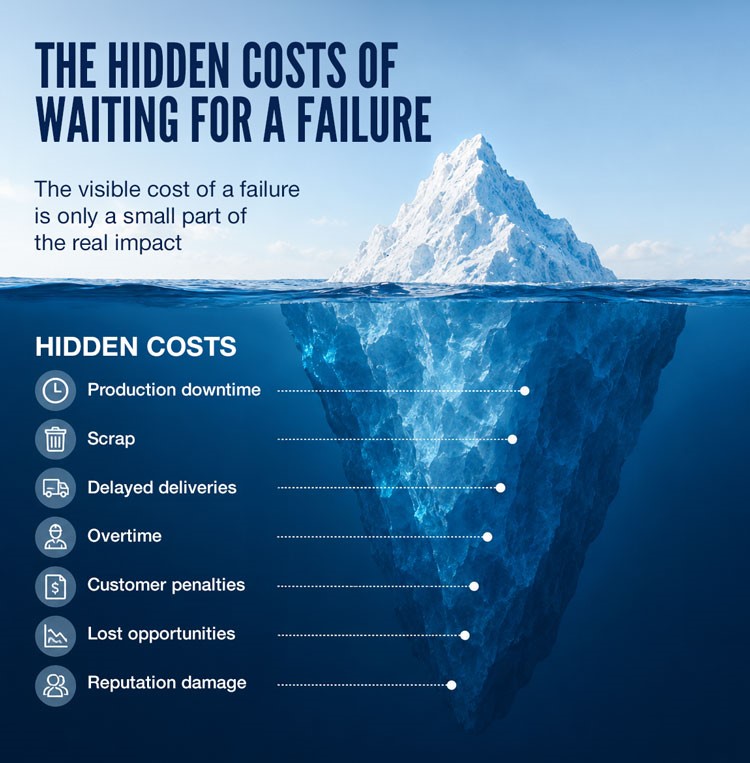

The Hidden Costs of Equipment Failure

The financial impact of a vacuum furnace failure extends far beyond the cost of replacing a defective component.
Every unplanned shutdown affects production, resources and delivery schedules, often generating costs that are not immediately visible but can significantly exceed the repair itself.

Production Downtime

When a vacuum furnace stops unexpectedly, the loss is not limited to the time required for repair.
Production schedules must be reorganized, operators and downstream departments may be left waiting, and another furnace may not have the required chamber size, validated recipe, qualification status or available capacity.
Even a relatively short outage can therefore affect several stages of the manufacturing plan.

Scrap and Rework

An interrupted thermal cycle does not automatically mean that the batch can be restarted.
The material condition, time-temperature history, vacuum or atmosphere conditions and cooling phase must be assessed before reprocessing is considered.
In aerospace, medical, automotive and other controlled sectors, rework may also require technical approval, additional inspection and complete traceability.
The value at risk may be far higher than the cost of the failed component.

Emergency Logistics

Urgent vacuum furnace repairs may require same-day spare-parts shipments, last-minute travel for service engineers, specialized lifting or diagnostic equipment, overtime, or temporary outsourcing of heat treatment.
These measures reduce disruption, but they are more expensive and offer fewer choices than a planned intervention.

Customer Delays

Unexpected downtime can quickly translate into missed delivery dates.
Delayed shipments may affect customer production schedules, trigger contractual penalties or damage long-term business relationships.
The indirect cost of losing customer confidence is often much higher than the repair itself.

Safety Risks

Operating equipment in degraded conditions or performing emergency repairs under time pressure can increase safety risks for both personnel and equipment.
Identifying potential issues during scheduled inspections helps create a safer working environment while reducing the likelihood of critical failures.

What Does Vacuum Furnace Support Really Include?

Vacuum furnace after-sales services should cover the period from commissioning to modernization, relocation and eventual replacement.
The exact scope depends on the furnace, its operating history and the criticality of the process, but comprehensive support normally combines several connected activities.

Technical Support, Assistance and Troubleshooting

Vacuum furnace technical support may begin with remote assistance, alarm and trend review, control-system diagnostics or operator guidance, where system access and reliable data are available.
When a field intervention is required, systematic troubleshooting should isolate the root cause rather than only reset the symptom.

Specialist vacuum furnace assistance is most valuable when it connects process behavior with mechanical, vacuum, electrical and control-system conditions.
A pressure alarm, for example, may result from a leak, contamination, pump degradation, sensor drift or incorrect sequence logic.
Treating only the alarm increases the risk of recurrence.

Preventive and Predictive Maintenance

Vacuum furnace preventive maintenance uses planned intervals based on operating hours, cycle count, service history, equipment requirements and process criticality.
Depending on the furnace, activities may include inspection of pumps, seals, cooling circuits, heating elements, the hot zone, gas systems, instrumentation and safety interlocks.

Vacuum furnace predictive maintenance uses equipment condition and performance trends to identify deterioration before functional failure.
Useful indicators may include pump-down time, pressure stability, temperature deviation, motor current, vibration, cooling-water flow and recurring alarms.
IoT platforms, AI or machine-learning models can support this analysis where the data quality and failure modes justify them, but technology does not replace engineering judgment.

Repairs and Spare Parts

Even the best maintenance strategy cannot eliminate every failure.
Effective vacuum furnace repair depends on accurate diagnosis, access to qualified technicians and availability of the correct vacuum furnace spare parts.
A spare-parts strategy should consider component criticality, lead time, obsolescence, interchangeability and the cost of holding stock against the cost of downtime.

This is particularly important for vacuum pumps, seals, sensors, thermocouples, control components and other items that can stop production or take a long time to source.
Stocking every part is rarely economical; identifying the parts that materially reduce recovery time is.

Refurbishments, Upgrades and Retrofits

Depending on equipment condition, the intervention may range from hot zone refurbishment or pump overhaul to vacuum furnace upgrades, vacuum furnace retrofits, revamping or a complete vacuum furnace refurbishment.
These terms are not interchangeable:

• refurbishment restores condition,
• an upgrade improves capability,
• a retrofit replaces or adapts obsolete technology,
• and an overhaul addresses extensive wear.

Modernizing an existing furnace may improve control reliability, data acquisition, safety, energy use, cooling performance or maintainability.
The investment is justified only when the expected improvement and the remaining structural life of the equipment support it.

Calibration and Commissioning

Vacuum furnace calibration of temperature, pressure and vacuum instrumentation supports process repeatability, traceability and reliable diagnostics.
Commissioning verifies that a new system operates as intended; recommissioning performs the same function after major repairs, upgrades or relocation.
Both should confirm not only that individual components work, but that the furnace performs correctly as an integrated system.

Installation and Relocation Support

Vacuum furnace relocation involves more than transportation.
It requires a technical survey, controlled disassembly, protection of sensitive components, verification of utilities, reinstallation, alignment, leak testing, recommissioning and, where required, performance or acceptance testing.
Proper planning reduces the risk of damage and shortens the path back to production.

Operator Training

Operator training is part of the support strategy, not an optional extra.
Personnel should understand normal operating behavior, alarm priorities, routine checks, escalation procedures and the early signs of degradation.
Correct operation cannot prevent every technical fault, but it can prevent avoidable damage and improve the quality of information available to the support team.

Independent, Multi-Brand Support

Independent vacuum furnace support creates value in both single-furnace and multi-brand environments.

For companies operating a single furnace, the main advantage is an objective assessment of the available options.
Repairs, refurbishments, retrofits and replacement can be evaluated according to equipment condition, production impact, expected service life and operational risk, without being limited to a predefined product or service package.
This is particularly valuable for aging equipment, obsolete components or major modernization decisions.

In multi-brand plants, the benefit is different: a single technical reference for the entire installed base.
This reduces fragmented service management and allows maintenance priorities, spare-parts planning and upgrade decisions to be coordinated consistently across different furnace brands and generations.

In both cases, the objective is the same: connect diagnostics, maintenance history, obsolescence management and modernization decisions within a controlled lifecycle strategy.
Without this coordination, vacuum furnace after-sales services remain isolated interventions rather than a structured approach to reducing downtime and protecting long-term production capability.

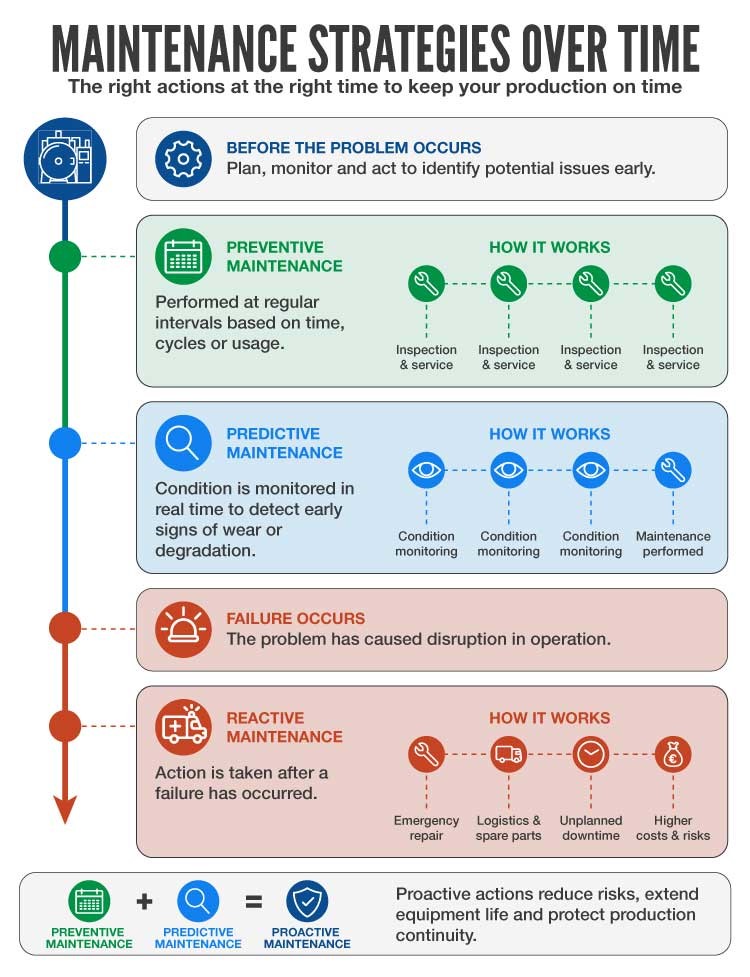

Preventive vs Predictive vs Reactive Maintenance

No single maintenance model should be applied indiscriminately to every component. The correct combination depends on failure criticality, whether deterioration can be detected, the time required to recover and the consequences for safety, the batch and production.

Most vacuum furnace maintenance programs use all three approaches.
Preventive work is appropriate for tasks linked to known intervals or wear mechanisms.
Predictive techniques are useful when reliable measurements reveal a meaningful trend.
Reactive maintenance remains reasonable for low-criticality failures or events that have no detectable precursor.

The most effective maintenance strategy is not necessarily the most technologically advanced one, but the one that best matches the furnace, the production process and the operational objectives.

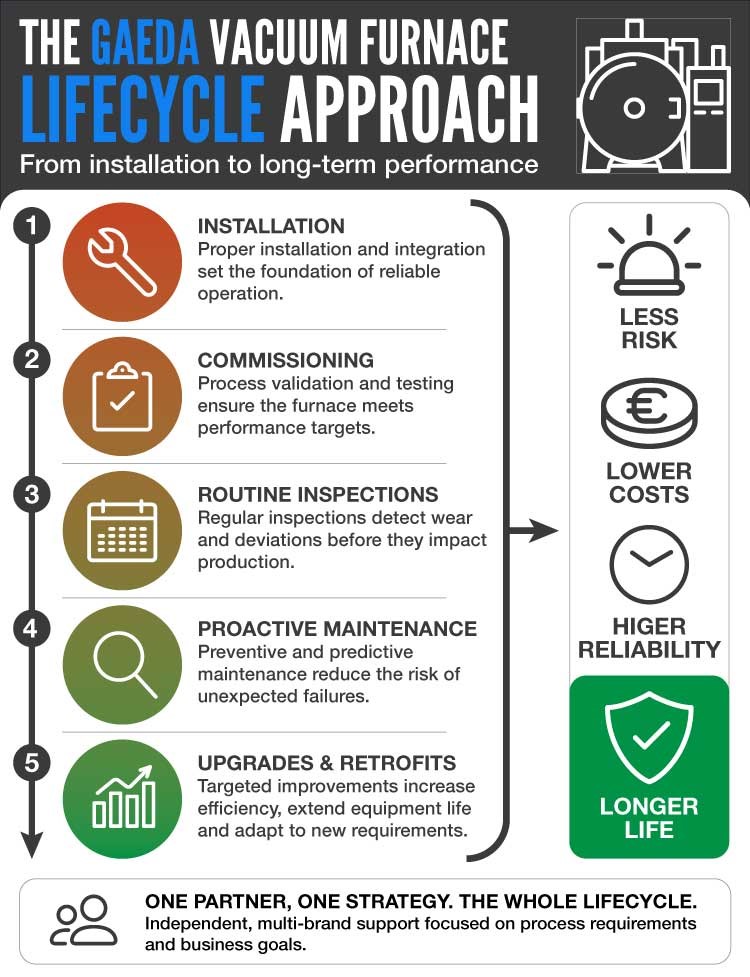

Building a Long-Term Maintenance Strategy

A long-term maintenance strategy begins with a technical baseline: current equipment condition, operating history, duty cycle, known failure modes, maintenance records, spare-parts availability and process criticality. Without this baseline, service intervals remain generic and priorities are difficult to defend.
From there, the plan should define inspection intervals, work that can be performed internally, activities requiring specialist support, critical spare parts, escalation routes, acceptable response times and the criteria for repair, refurbishment, upgrade or replacement. The plan should reflect the actual furnace and production environment rather than a standard checklist.

Maintenance records are useful only when they change future decisions.
Repeated seal failures may indicate alignment, surface-condition or cooling problems.
Deteriorating pump-down time may point to leakage, contamination or pump condition.
Recurring temperature deviations may require an investigation beyond recalibration.
Root-cause analysis prevents the same intervention from being repeated without addressing the underlying mechanism.

Lifecycle management must also anticipate obsolescence.
PLC hardware, drives, HMI panels, instrumentation and software may become unsupported long before the vessel and major mechanical structure reach the end of their useful life.
A planned retrofit can replace obsolete technology during a scheduled shutdown instead of allowing a single failed component to create a prolonged outage.

The strategy should be reviewed when utilization changes, new processes or materials are introduced, quality requirements become more demanding, recurring failures appear or equipment performance begins to drift. A lifecycle plan is not a fixed calendar. It is a decision framework that evolves with the furnace.

The result is not a guarantee of zero failures.
It is greater control over what can be prevented, what should be monitored, how quickly the plant can recover and when further repair is less rational than modernization or replacement.

Conclusion

Vacuum furnace support should not be measured by the number of service interventions performed.
It should be measured by the control it provides over equipment condition, downtime risk and recovery decisions.

Reactive repair remains necessary, but it should not define the support model for production-critical systems.
A balanced combination of technical assistance, preventive maintenance, condition-based diagnostics, spare-parts planning, operator training and targeted modernization makes failures less frequent, response more effective and costs more predictable.

Ultimately, the goal of vacuum furnace support is not simply to repair equipment.
It is to reduce operational risk, protect production continuity and enable informed technical decisions that deliver long-term value.
